Dab Rig Adapters (2026): Reducers, Expanders, and Drop-Downs That Actually Fit

You bought a banger that will not fit your rig. The joint is either the wrong diameter or the wrong gender, and a dab rig adapter is the eight dollar piece of glass that fixes it without replacing anything.

Quick answer: An adapter converts one joint into another, so a 10mm banger can sit on a 14mm rig or a male banger can sit on a male joint. Match size and gender, and read the rig side first.

The confusing part is not the hardware. It is the naming. Adapters get listed as strings like "14mm male to 18mm female," and if you read that string backwards you will order the exact opposite of the part that fits. This guide covers how to measure what you have, how to read an adapter listing, which adapter solves each of the four fitment problems, and when your actual problem is heat rather than size.

The two things that decide whether a joint fits

Every ground glass connection on a rig has exactly two properties: a diameter and a gender. Get both right and the piece seats. Get either wrong and it does not.

Diameter comes in three standard sizes across almost all rigs and bongs: 10mm, 14mm, and 18mm. Those are nicknames. The technical dimensions are closer to 14.5mm and 18.8mm, which is why you will occasionally see an 18mm joint listed as 19mm. Nobody grinds glass to a round 14.0mm. The shorthand stuck because the real numbers are awkward.

Gender is simpler and gets misread more often. A male joint is the tapered piece that inserts. A female joint is the socket that receives. A male joint on your rig needs a female banger. A female joint on your rig needs a male banger. Opposites connect.

How to measure the joint you actually have

You do not need calipers, though calipers make it painless.

For a female joint, measure the inner diameter straight across the opening. For a male joint, measure the outer diameter at the widest point of the frosted taper, right where the ground section is largest. Frosted glass is your landmark in both cases: the ground, cloudy band is the joint, and clear glass past it is not.

If the number lands near 10, 14, or 18, round to the nearest standard. There is no half-size in between. A reading of 14.4mm is a 14mm joint.

If you have no way to measure, use the bowl or banger that came with the rig as a reference and compare it against a listing photo. Guessing off a photo alone is how people end up with two adapters and neither one fits.

Why the taper matters more than you would think

Ground glass joints are not a cannabis invention. They are borrowed straight from laboratory glassware, and they follow ASTM E676, the specification for interchangeable taper-ground joints. The important spec is the taper ratio: 1 in 10. For every 10mm of length along the joint, the diameter changes by 1mm.

That single ratio is why the connection works at all. A male taper wedges into a female taper along the whole ground surface instead of touching at one ring, which is what gives you a seal with no O-ring and no thread. It is also why a joint that is one size off does not "sort of" fit. The tapers are cut to different diameters, so the surfaces never make contact along their length.

Lab glass uses a two number code for the same thing, like 14/20, where the first number is the diameter at the large end of the ground area and the second is the ground length in millimeters. Rig listings drop the second number because the length is rarely the problem.

How to read an adapter listing without guessing

Here is the convention that saves you a return: the rig side is listed first.

An adapter labeled "14mm male to 18mm female" has a 14mm male end that goes into your rig and an 18mm female socket on the other end for your accessory. Read left to right as "plugs into, then accepts."

Two more terms show up constantly:

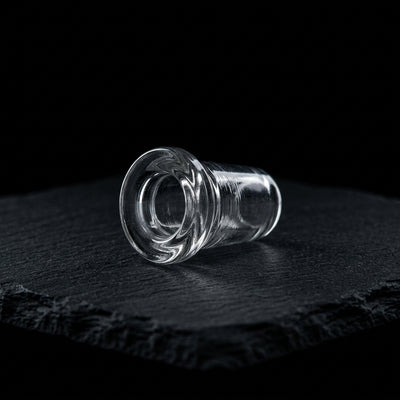

• A reducer steps a large joint down to a smaller one. It lets a 10mm banger live on a 14mm rig.
• An expander steps a small joint up. It converts a 14mm rig joint so an 18mm banger can sit on it.

Same object, different direction. Some listings use both words on the same product, which is unhelpful but harmless once you know to read the size and gender string instead of the marketing noun.

The four fitment problems, and what fixes each

Almost every adapter question is one of these four.

Your accessory is smaller than your joint

You have a 14mm female rig and a 10mm male banger. You need a 14mm male to 10mm female adapter. The 14mm male end drops into the rig, and the 10mm female socket takes the banger.

This is the most common case, because small bangers and travel rigs are everywhere and 14mm is the default joint on most rigs in the 8 to 16 inch range. Oil Slick's 10mm to 14mm adapter runs $6.99 and is in stock as of this writing.

Your accessory is larger than your joint

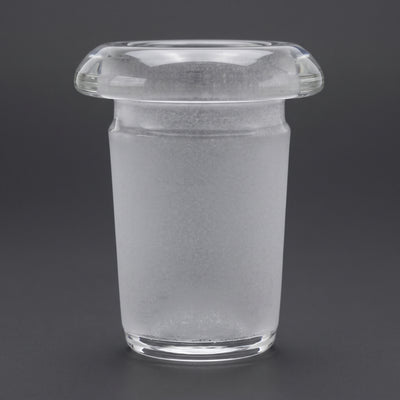

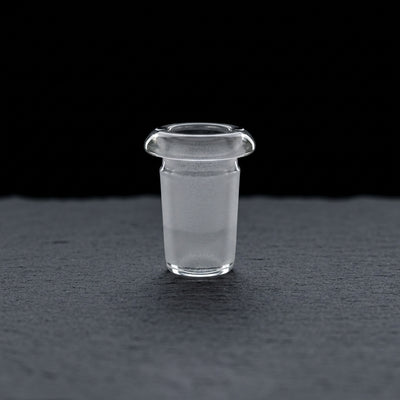

You have a 14mm rig and an 18mm banger. You need an expander, listed as 14mm to 18mm. The 14mm to 18mm adapter starts at $5.49, with 10mm and alternate 14mm variants at $6.99.

Worth knowing before you buy: an 18mm banger on a 14mm rig moves a fair amount of glass and mass out over a joint that was not engineered for it. It works, but treat the setup gently and do not lean on the banger while you are heating it.

Male banger, male rig joint

Two males will never connect. You need a female to female adapter, sometimes sold as a double female. It gives both pieces a socket to insert into.

Female banger, female rig joint

The mirror image, and you need a male to male adapter with a taper on each end. Less common, because most rigs ship female, but it happens with older glass and with some flower bowls.

If you are shopping for a rig rather than solving a fitment problem, note that Oil Slick includes a free quartz banger with rig purchases, which sidesteps this entire category by matching the joint at the source.

Drop-downs: when the problem is heat, not size

A drop-down is an adapter with an offset. Instead of putting the banger directly on the rig joint, it moves the banger down and out, usually by an inch or two.

People buy them for size conversion, since most drop-downs also change joint size or gender along the way. But the reason they exist is thermal.

Borosilicate glass, the material nearly every quality rig is made from, has a coefficient of thermal expansion of about 3.3 x 10⁻⁶ per Kelvin. That low number is exactly why borosilicate survives heat that would shatter soda-lime glass, and it is the basis for the ASTM E438 Type I classification that lab glassware is held to. Low expansion means a temperature gradient across the glass produces low internal stress.

Low is not zero. Lab guidance for borosilicate is that above roughly 150°C, heating and cooling should happen slowly and evenly. A torched quartz banger runs several times that temperature, and it sits on a joint attached to the body of your rig. Repeated cycles of intense localized heat next to cool glass is precisely the gradient the material is not thrilled about.

A drop-down puts physical distance between that heat and your rig's joint. Three things follow:

1. The rig joint sees less thermal stress over its life.
2. The center of gravity drops, so a tall rig with a heavy banger is less tippy.
3. Reclaim collects in the drop-down instead of running down into the rig, and a drop-down is enormously easier to clean than a chamber.

Choosing 45 or 90 degrees

Match the angle to your rig's joint so the banger ends up level.

A rig with a vertical joint, pointing straight up, needs a 90 degree drop-down. A rig with an angled joint stem needs a 45 degree. Get this backwards and the banger sits tilted, which means your dab pools to one side and your carb cap will not seat flat.

Drop-down or reclaim catcher

They overlap, and plenty of products are both. The distinction worth drawing is intent.

A drop-down is primarily about distance and fitment, with reclaim collection as a benefit. A dedicated reclaim catcher is built around recovery, with a removable collection cup or a joint you can unscrew to harvest what you caught. If your goal is saving reclaim rather than protecting the joint, buy the catcher. Oil Slick's 2.5 inch reclaim catcher is $14.99.

One caution that applies to both: a clogged drop-down stops catching anything and starts restricting airflow. Whatever you install, clean it on a schedule.

Keeping the stack together

Once you add an adapter you have two ground connections instead of one, and every joint is a place where gravity can win. A banger sitting in an adapter sitting in a rig is held together by friction alone.

Joint clips solve this. They are the small color-coded plastic clips that snap around a seated joint and lock the two halves together, invented by Hermann Keck in 1980 and standard in labs ever since. They are typically molded from polyacetal, they carry the size stamped into the plastic, and the color tells you the size at a glance.

There is one specification on those clips that matters enormously here and gets ignored constantly: the plastic is rated to about 140°C.

A torched banger runs far above that. If you clip the joint directly under a banger you are heating a piece of plastic well past what it was designed for, and it will soften, deform, or worse. Clip the connection that is furthest from the heat, which usually means the joint where the adapter meets the rig, and leave the banger connection unclipped. Better still, on a torch setup, use the clip only while transporting or cleaning the rig and pull it before you heat.

Can you stack two adapters?

Mechanically yes. Practically, stop at one.

Each adapter adds length, and length on a joint is leverage. A banger on top of two stacked adapters puts a long lever arm on a connection designed for a short one, and the failure point is not the adapter you paid $6 for. It is the rig joint you cannot replace.

If one adapter does not get you there, the correct answer is different hardware, not more glass in the stack.

When an adapter gets stuck

Ground taper joints hold by friction, and friction plus sticky residue plus a few heat cycles eventually produces a joint that will not separate. Do not muscle it. Twisting hard on glass is how joints snap.

The physics gives you the move: heat expands the outer piece. Run warm water over the female joint only, or aim a hair dryer at it, and let the socket expand away from the male taper inside it. Give it time rather than force.

If warmth alone does not do it, gentle tapping helps. Use the wooden handle of a spatula or a similar soft object and tap in the direction you want the piece to travel. Never tap glass against glass.

Prevention is easier than rescue. Seat joints firmly but do not wrench them together, and clean the ground surfaces when you clean the rig, because it is the residue in the frosted band that welds the two halves over time.

Swapping between flower and dabs

The other reason people buy adapters has nothing to do with a banger that does not fit. It is running one piece for both flower and concentrate.

A bong with a 14mm female joint takes a flower bowl and a banger equally well, and both are 14mm male. No adapter needed. The adapter only enters the picture when the two accessories disagree, which usually happens because the bowl came with the bong and the banger was bought separately at a different size.

The thing to check before buying an adapter for this is the joint angle rather than the size. Bongs commonly use a 45 degree joint, which is perfect for a bowl and awkward for a banger, since an angled joint tilts the bucket. That is a drop-down problem, not a reducer problem.

Oil Slick includes a free glass bowl with bong purchases, so a new bong arrives already matched on the flower side and you only need to solve for the dab side. Browse bowls and downstems if the bowl is what is missing.

What adapters actually cost

Straightforward glass reducers and expanders sit between $5 and $8. That is the whole category for basic size and gender conversion, and there is not much reason to spend more.

Drop-downs and angled adapters run $12 to $15. Reclaim catchers land near $15.

Above that you are buying function rather than fitment. A Monark side car matrix attachment at $89.99 adds a perc and a water chamber to a Puffco Peak, and a Puffco Peak Pro Link at $230 is a rig integration, not a joint converter.

The buying mistake worth avoiding is spending $40 on an adapter to rescue a $30 banger. If the conversion costs a meaningful fraction of a correctly sized replacement, buy the piece that fits.

Common questions

Does an adapter hurt airflow or flavor?

A short glass adapter has a negligible effect on either. You are adding a couple of inches of smooth bore. A long drop-down adds more surface for vapor to condense on, which is why some flavor chasers skip them, and it is also exactly why they catch reclaim so well. Pick your tradeoff.

Can I use a bowl adapter for dabs?

Physically yes, since a joint is a joint. Practically, check the glass thickness. Adapters sold for flower bowls are sometimes thinner than adapters intended to carry a torched banger. Thin glass next to repeated heat cycles is the wrong bet.

Will a 14mm banger fit an 18mm joint without an adapter?

No. It will sit loose in the socket, leak air, and fall out. There is no in-between fit with ground taper joints. This is the single most common thing people try before searching for an adapter.

What about quartz adapters instead of glass?

Quartz handles heat better than borosilicate and costs more. For a standard reducer sitting below the banger, glass is fine because the adapter is not what you are torching. Quartz is worth it when the adapter itself takes direct flame, which is unusual in a normal setup.

Do adapters work on silicone rigs?

If the silicone rig has a glass joint, yes, and most hybrid silicone rigs do. If the joint is molded silicone, fitment gets loose and inconsistent, and an adapter tends to wobble.

The short version

Measure the inner diameter for a female joint and the outer diameter at the widest ground point for a male joint. Round to 10, 14, or 18. Note the gender. Then read the adapter listing rig side first, and confirm the second half matches the accessory you are trying to attach.

If your banger fits but your rig joint is taking a beating, the answer is not a different adapter size. It is a drop-down, at the angle that keeps the banger level.

Write the two numbers down before you shop. Every dab rig adapter listing is answerable once you know the diameter and the gender of the joint you are starting from, and the ordering stops being a coin flip.
