E-Rig Temperature Settings by Concentrate: Puffco and Carta Temps for Rosin, Resin, and Diamonds (2026)

Your e-rig's lowest stock preset is probably too hot for the concentrate you just loaded. On a Puffco Peak Pro the coldest factory setting is 490°F, and Puffco's own concentrate guide puts live rosin at 375 to 450°F, so the stock device cannot reach the range the manufacturer recommends for its own customers' favorite extract without the app.

Quick answer: Set your e-rig by concentrate type, not habit: live rosin 375 to 450°F, live resin 450 to 500°F, badder 450 to 525°F, shatter 500 to 550°F, THCA diamonds 525 to 600°F. A stock Puffco Peak Pro bottoms out at 490°F, so rosin and bubble hash need the Puffco Connect app to reach their range, while a Focus V Carta 2 gets there on its Blue preset at 425°F.

That gap is the whole reason this page exists. Below is every published preset temperature for the common e-rigs, the temperature range each concentrate type actually wants, and which preset to pick when the two do not line up.

Every Stock E-Rig Preset Temperature, By Device

These are the numbers printed in the manufacturers' own manuals, not community estimates. If your device is not listed here, check its manual before trusting a number you found on a forum.

Puffco Peak Pro and Peak Pro 3DXL

Four presets, cycled by single-clicking the button:

• Low (High Flavor) - 490°F. Best for delicate extracts, least vapor.
• Med (Balanced Flavor) - 510°F. Balanced flavor and vapor.
• High (Strong Vapor) - 530°F. More vapor, slightly less flavor.
• Peak (Most Vapor) - 575°F. Biggest hits, least flavor.

The Peak Pro 3DXL manual and the earlier Peak Pro manual list identical numbers, so a firmware generation gap is not going to move them. Custom temperatures require the Puffco Connect app, and saving new profiles (as opposed to editing the four on the device) requires being logged into an app account.

Puffco Proxy

Same bottom three, lower ceiling:

• Blue (High Flavor) - 490°F
• Green (Balanced Flavor) - 510°F
• Red (Strong Vapor) - 530°F
• White (Most Vapor) - 545°F

The Proxy tops out 30 degrees below the Peak Pro. If you moved from a Peak Pro on Peak setting to a Proxy on White and the hits feel thinner, that is why, and it is not a defect.

Puffco Peak (original)

Here is the honest answer nobody gives you: the original Peak manual publishes no Fahrenheit numbers at all. It lists the four settings as Low, Med, High, and Peak, and maps them to load size instead, S through XL. The 450/500/550/600 figures you see quoted everywhere are third-party measurements, not Puffco's published spec. Treat them as a rough ladder, not gospel. The manual does give two useful numbers: average heat-up is about 20 seconds, and a full charge takes roughly 2.5 hours.

Focus V Carta 2

Five presets rather than four, and a much lower floor:

• Blue - 425°F
• Yellow - 450°F
• Green - 475°F
• Purple - 500°F
• Red - 525°F

Custom temperatures come from the V Browser app. That 425°F floor is the single most important number in this section, and I will come back to it.

The Concentrate-To-Temperature Table

Puffco publishes recommended ranges by concentrate type in its own knowledge base. Those ranges are the closest thing this hobby has to a manufacturer standard, so they are what I am working from here. What Puffco does not do is reconcile those ranges against its own hardware. That is the column that has been missing.

Concentrate	Recommended range	Peak Pro / Proxy	Carta 2
Bubble hash (water hash)	350-400°F	Out of reach on stock presets	Out of reach on stock presets
Live rosin	375-450°F	App required	Blue 425°F
Cold-cured rosin	375-450°F	App required	Blue 425°F or Yellow 450°F
Live resin / sauce	450-500°F	Low 490°F	Yellow 450°F to Purple 500°F
Badder, budder, crumble, sugar	450-525°F	Low 490°F or Med 510°F	Green 475°F or Purple 500°F
Shatter	500-550°F	Med 510°F or High 530°F	Purple 500°F or Red 525°F
THCA diamonds	525-600°F	High 530°F or Peak 575°F	Red 525°F
THCA isolate	550-600°F	Peak 575°F	Out of reach on stock presets

A few things fall out of that table immediately.

Rosin is the problem child. Both of the rosin rows want 375 to 450°F. A stock Peak Pro or Proxy cannot go below 490°F. So if you press your own or buy hash rosin and you are running Low on a Puffco, you are dabbing roughly 40 to 115 degrees above the recommended window. That does not mean the dab is ruined, but it explains the specific complaint I hear constantly: rosin tastes flat on a Peak and bright on a torch rig with a proper cooldown. Pair the app with the device and set 430 to 445°F, or accept Low as a compromise.

Bubble hash is out of reach on every stock preset listed here. 350 to 400°F is below the Carta 2's Blue and well below the Puffco floor. Full-melt hash on a stock e-rig is an app-only proposition.

Badder and budder are not in Puffco's published list. They are whipped BHO, chemically the same family as sugar and crumble, so the 450 to 525°F band is where they belong. I would rather tell you that than invent a number and pretend it came from somewhere.

Isolate is out of reach on a Carta 2. Its 525°F ceiling sits below the 550 to 600°F isolate range. Diamonds are fine at Red; isolate is not.

The General Bands, If Your Concentrate Isn't Listed

Puffco's broader framework is worth memorizing because it covers everything the table does not:

• 420 to 475°F preserves terpenes, produces lighter vapor, and is easiest on the throat. Works best with a carb cap controlling airflow.
• 475 to 550°F is the balanced middle. Stronger effect, some terpene retention, moderate clouds. Most people live here.
• 550 to 650°F maximizes vapor and intensity at the cost of flavor and smoothness.
• Above 650°F you get burnt and charred taste. There is no upside past this line.

Notice that three of the four Puffco Peak Pro presets sit in that middle band and one sits in the high band. Puffco built its hardware for the 475 to 575°F consumer, and it is honest about that in the product design even if the marketing copy talks about flavor.

Why Your Setting Isn't the Temperature Your Dab Sees

The number on the screen is a heater target, not a measurement of your concentrate. Four things sit between the two.

Load size. A rice-grain dab on a 490°F chamber vaporizes almost instantly at close to chamber temperature. A pea-sized load pulls heat out of the chamber faster than the coil replaces it, so the effective temperature at the oil is lower and the tail of the hit is cooler. This is exactly why the original Peak manual indexes its four settings to load size instead of degrees. It is arguably the more useful way to think about it.

Chamber mass and geometry. The Peak Pro 3DXL chamber has a 78 percent larger bowl than the standard 3D chamber and Puffco rates it at roughly double the vapor. A bigger bowl holds more thermal mass and recovers differently. Swapping chambers changes the feel of a preset even though the number did not move.

Residue. A film of reclaim between the coil and your fresh dab is an insulator. It is the single most common cause of "my e-rig used to hit harder." Nothing is broken. The chamber is dirty.

Airflow. Draw speed changes how fast heat leaves the chamber. Slow and steady keeps the oil near target. A hard pull drops the effective temperature and can pull liquid where it should not go. Puffco explicitly warns that strong inhales can cause spillage and chamber damage.

Four Problems Worth Fixing Before You Blame the Temperature

A puddle left in the chamber after the hit

Either the setting is too low for that concentrate, or the load is too big for the setting. Try one step up before you try a bigger dab. If you are on Low with rosin, that puddle is expected behavior at a too-cool-for-the-load setting rather than a device fault.

Harsh, black, or burnt taste

Two causes, and they need opposite fixes. If the chamber is clean, you are too hot. Drop a preset. If the chamber has visible residue, you are burning old reclaim, not your dab, and the fix is cleaning. Anything that tastes charred is telling you something crossed 650°F somewhere.

Weak hits that got weaker over a few weeks

Cleaning schedule, per the manufacturers:

• Puffco: swab the chamber after each use while it is still warm. Soak the chamber in 90 percent or higher isopropyl for 20 minutes and never rinse it with water. Glass gets the same 20-minute soak, then a thorough water rinse and a full air-dry. Puffco's rule of thumb is a deep clean each time the battery fully depletes, which is about 30 heating cycles.
• Focus V Carta 2: dry cotton swab in the atomizer cup after every session, full atomizer soak in 70 to 90 percent isopropyl every 25 to 50 sessions.

Let anything soaked in isopropyl air-dry completely before it goes near a heating element. It is flammable.

Everything reads fine but the hits are inconsistent

Check the water line. Puffco's instruction is to fill through the mouthpiece to just above the perc slots, glass removed first. Overfilled glass sends water into the lower section, and water in the base is a much bigger problem than a mediocre dab. Neither brand wants their device charged or operated outside 32 to 100°F either, so a rig that lived in a hot car is going to behave strangely for a while.

Boost, Intensity, and Vapor Control

The Peak Pro has three features people own without using, and all three interact with temperature.

Boost Mode is a double-click during an active heat cycle. On the 3DXL it adds 15 seconds and 18°F. That 18 degrees is the useful detail. If Low at 490°F leaves a puddle, Boost puts you at roughly 508°F for the tail of the hit, which is often exactly the correction you needed without committing to Med.

Intensity Mode is five clicks and starts a heat cycle with added intensity, designed specifically for dry dabs with no water in the glass. Different tool, different job.

Vapor Control is app-side and adjusts cloud size independently of temperature: Standard, High, and Max for anyone with a 3D chamber, plus XL when a 3DXL chamber is attached. If you want bigger clouds without going hotter, this is the setting to reach for instead of jumping to Peak.

The Carta 2 has a smaller version of the same idea. A double-click during a session extends it by 10 seconds, which buys you a longer draw at the same temperature rather than a hotter one.

Gear That Actually Changes the Temperature Story

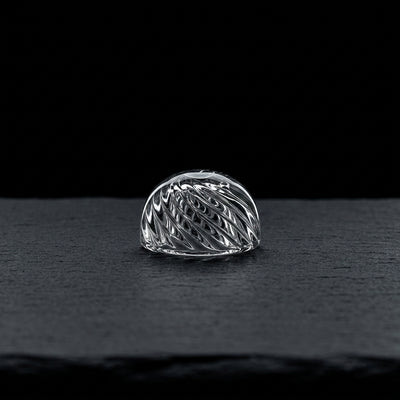

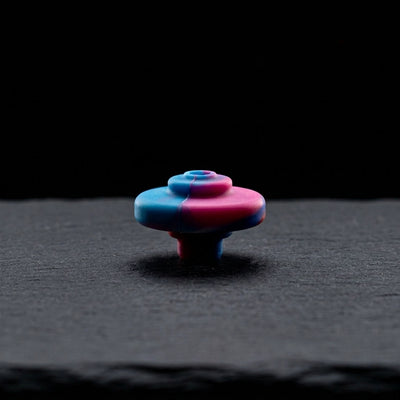

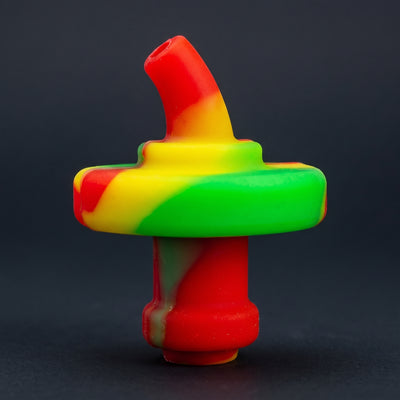

A carb cap matters more at low temperatures than at high ones, because below 475°F you are relying on restricted airflow and reduced pressure to finish vaporizing oil the heat alone will not. If you dab rosin or resin, the cap is doing real work. Our carb caps run from around $8 for a basic silicone cap up to $50 for a spinner, and the cheap one still beats no cap. For Peak Pro owners specifically, the Oculus carb cap runs $49.95 in our dab accessories section.

Replacement glass is the other one people put off. A clouded or chipped glass top changes draw resistance, and draw resistance changes effective temperature. Peak Glass 2.0 is $79.95 and Peak Pro Glass 2.0 is $99.95.

Keep a proper dab tool for portioning. Load size is a temperature variable, and eyeballing a rice-grain dab off a paperclip is not portion control.

If you are still torch-and-banger and reading this to decide whether an e-rig is worth it, the honest version is that e-rigs trade peak flavor for repeatability. Our dab rigs start well under the price of any e-rig on this page and ship with a free quartz banger, and a $30 timer plus a good banger will out-flavor a stock Peak Pro on rosin every time. It will also make you time every single dab.

FAQ

What is the best temperature for live rosin on a Puffco?

430 to 445°F through the Puffco Connect app. Puffco's own guidance puts live rosin at 375 to 450°F, and the lowest stock preset on a Peak Pro or Proxy is 490°F, so the app is the only way to reach the recommended range. If you will not use the app, use Low and accept some terpene loss.

What temperature should I set for THCA diamonds?

525 to 600°F. On a Peak Pro that means High at 530°F for a flavor-leaning dab or Peak at 575°F for full conversion and maximum vapor. On a Carta 2, Red at 525°F is the only preset that reaches the band. Diamonds are nearly pure crystalline cannabinoid with little terpene content, so there is not much flavor to protect and the higher end costs you less than it would with rosin.

What is the best temperature for badder or budder?

450 to 525°F. Puffco does not list badder separately, but it is whipped BHO and belongs with sugar and crumble. Low at 490°F on a Puffco or Green at 475°F on a Carta 2 both sit in the band.

What is the best temperature for live resin on a Peak Pro?

Low, 490°F. Live resin sauce wants 450 to 500°F and Low is the only stock preset inside that window. This is the one concentrate where the Puffco floor is well matched to the material.

Do e-rigs smell less than a torch rig?

Somewhat, because there is no butane and no scorched residue on an overheated nail, but vapor still carries terpenes and terpenes still travel. Sealed storage between sessions does more for room odor than the device does.

Is there an official dry herb chamber for the Peak Pro?

Puffco does not publish one. The Carta 2's Intelli-Core system does officially support both concentrate and dry herb sessions per its manual, which is a real point of difference if you want one device for both.

Does a higher setting waste more of my concentrate?

The opposite, usually. Higher temperatures vaporize more completely and leave less in the chamber, which is why puddles show up at the low end and not the high end. What you lose at high temperatures is flavor, not material.

The Short Version

Look up your concentrate in the table, look up your device's presets, and pick the preset that lands inside the recommended range. When nothing lands inside it, either use the app or pick the closest preset and know which direction you are compromising. Rosin and bubble hash need the app on a Puffco. Resin, badder, shatter, and diamonds are all covered by stock presets. And if the hits got weak, clean the chamber before you touch the temperature at all.
